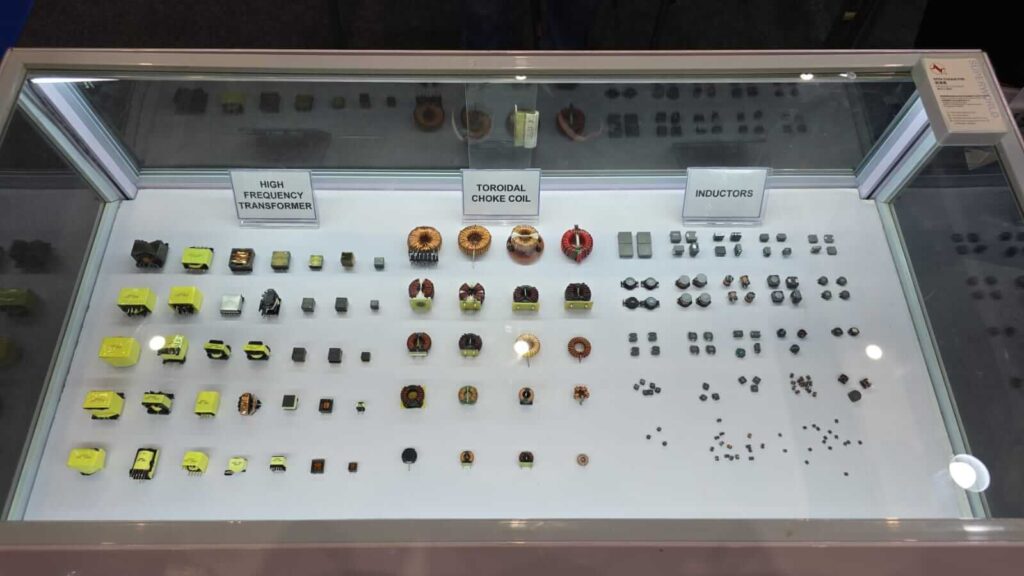

At the India Delhi Superworld Electronics trade show, the focus is on the latest in wireless charging technology, especially the Magnetic Power Profile (MPP) System Design central to the Qi2 standard. Developed by the Wireless Power Consortium, MPP enhances charging efficiency with precise magnetic alignment, improving speed and reliability for devices from smartphones to kitchen appliances. Industry leaders in Delhi are discussing Qi2 MPP’s potential to transform wireless charging. Attendees are witnessing demonstrations that showcase its future impact on consumer electronics.
1) What is MPP System Design?
The Magnetic Power Profile (MPP) System Design is a core component of modern wireless charging standards, particularly in Qi2. MPP technology utilizes magnetic alignment to ensure optimal positioning of wireless charging transmitter and receiver coils before power transfer begins. This alignment reduces energy loss and enhances charging efficiency, making it vital for achieving the faster charging speeds and higher power delivery required by today’s devices.
2) MPP PTx Coil System

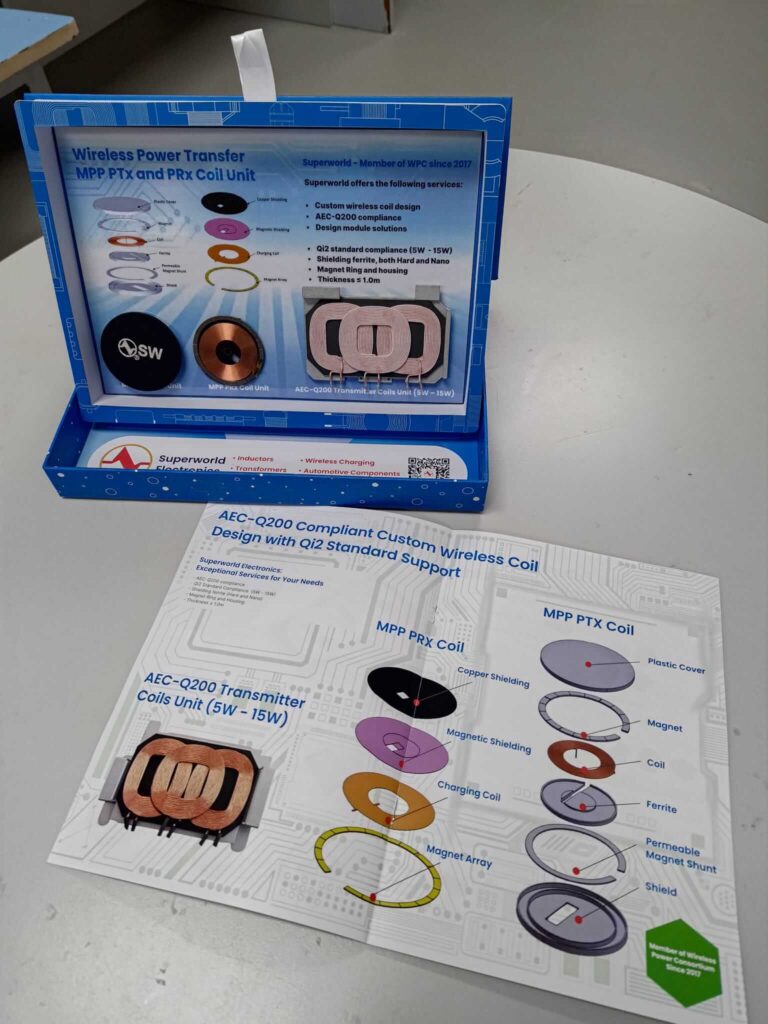

The MPP PTx Coil System comprises several key components working together to achieve precise magnetic alignment and efficient power transfer:
- Top Casing: Plastic housing.
- Magnet Rings: Magnets with Ni-Cu-Ni layers.
- Permeable Magnet Shunt: Directs and focuses magnetic flux.
- Coil: Litz wire.
- Ferrite: Concentrates and directs magnetic fields effectively.
- Bottom Casing: Aluminium structure providing support.
3) Mechanical Design for the PTx Coil System
The mechanical design of the PTx coil system is meticulously crafted to support the correct operation of the MPP system. This design ensures that all components are precisely placed and aligned, facilitating the magnetic alignment necessary for efficient power transfer. Key aspects include the dimensions of the magnet array, ferrite elements, and the coil’s placement within the casing. These specifications ensure reliable and efficient wireless charging.
4) Magnet Specifications
Magnet specifications are critical to the effectiveness of the PTx Coil System in maintaining proper magnetic alignment. Important specifications include:
- Residual Magnetic Flux Density (Br)
- Coercive Force (Hcb)
- Intrinsic Coercivity (Hcj)
- Maximum Energy Product (BHmax)
These values ensure the magnets provide reliable alignment and are compatible with the electronic environment of the device.
5) Bottom Enclosure Design
The bottom enclosure of the PTx coil system is designed with precise dimensions to support the coil and ferrite components. Key dimensions include:
- Thickness of Bottom Enclosure
- Inner and Outer Wall Thicknesses
- Height of Inner and Outer Walls
These specifications ensure that the enclosure is both compact and robust, providing the necessary protection and support for the internal components.
6) Differences Between Qi, Qi2 MPP, and MagSafe
While Qi and Qi2 MPP are wireless charging standards developed by the WPC, they differ significantly:
- Qi: The original standard relies on manual alignment by the user without magnetic assistance. It supports a wide range of devices but offers less charging efficiency.
- Qi2 MPP: Builds on the Qi standard by incorporating magnetic alignment technology similar to Apple’s MagSafe, enhancing efficiency and enabling faster charging (up to 15W) with broader device compatibility.
- MagSafe: Apple’s proprietary technology uses a ring of magnets for precise alignment and accessory integration within the Apple ecosystem. It offers optimized charging for Apple devices but is limited to Apple’s ecosystem.
Applications of MPP System Design
The MPP system is especially beneficial in applications where reliable and efficient wireless charging is crucial:
- Smartphones and Tablets: Qi2 MPP technology enables faster and more efficient wireless charging of mobile devices, including the latest iPhone models, without the need for precise manual alignment.
- Wearables: Smartwatches benefit from precise alignment and efficient power transfer, ensuring longer battery life and quicker charging times.
- Laptops and Tablets: As more laptops and tablets adopt wireless charging, the MPP system ensures these devices can charge quickly and efficiently, even at higher power levels.
- Cordless Kitchen Appliances: The Ki Cordless Kitchen standard uses principles similar to MPP for powering devices like induction cooktops, blenders, and coffee makers without cords.
